Synopsis: When making multiple boxes, you can streamline the job by using a fixed stop block and a removable spacer. The removable spacer, used for the short box sides, also helps you to batch out multiple lids and bottoms, in solid wood or plywood, without changing your tablesaw setup. Doug Stowe demonstrates how to use his stop-and-spacer system on a variety of different box designs.

Several years ago, I was faced with a daunting task—making 870 boxes with splined miters for the Crystal Bridges Museum in the Arkansas Ozarks. I was determined to streamline the job without sacrificing the final result. The answer was easy: Pair a fixed stop block with a removable spacer. The fixed stop would be clamped to my tablesaw sled and used when cutting the boxes’ long sides. The spacer would be taken in and out in alternating sequence to cut the short sides. The same simple system also works well to create a wide variety of lids and bottoms, letting me batch out multiple designs in solid wood or plywood without changing my setup. Here, I’ll show how I make lids with floating panels, overlaid lids, and inset lids; bottoms made from solid wood and plywood; as well as the box sides themselves—all using the same stop-and-spacer technique.

Another benefit of the removable spacer is that it lets me repeat pleasing proportions. For this reason, my block is typically a 2-in. by 2-in. square, which makes it a useful size for a wide range of appealing ratios, such as 3:5, 4:6, 5:7, 8:10, 9:11, and 10:12. I’ll demonstrate the techniques on mitered boxes here, but you could easily use the stop-and-spacer method for box-jointed and dovetailed boxes.

Make a mitered box

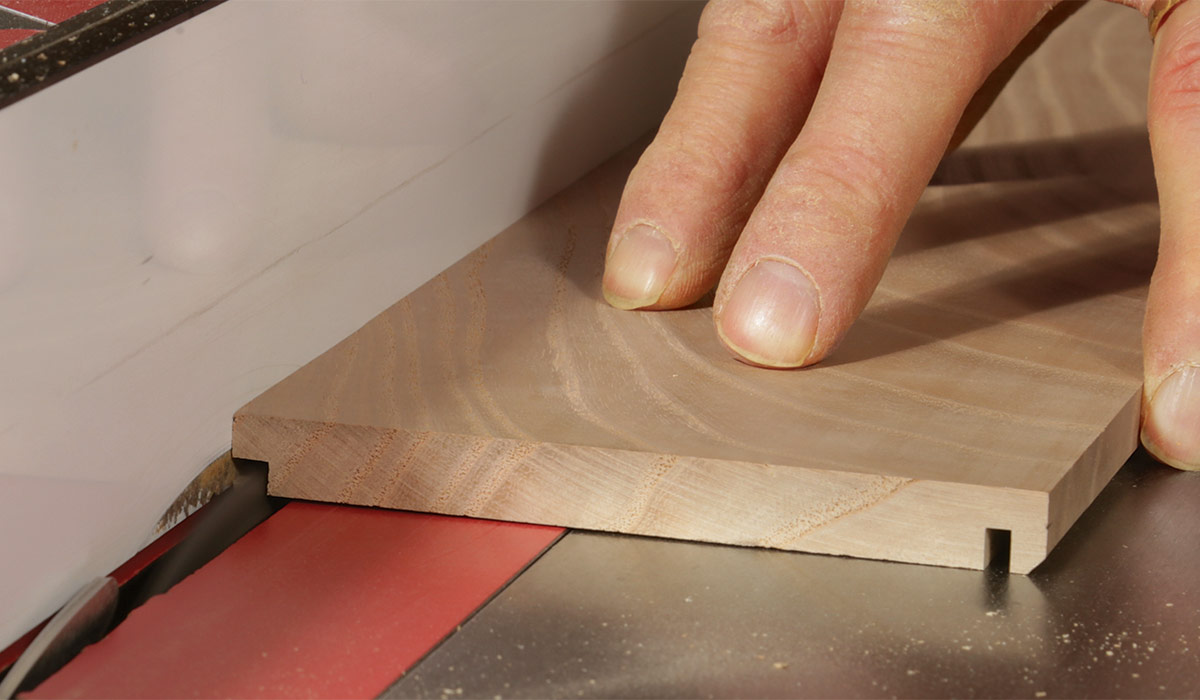

cutting groove and rabbet in side of box
The sides’ blanks get a groove toward the bottom edge and a rabbet at the top. The groove captures the bottom, and the rabbet recesses the lift-off lid.

My boxes have grain-wrapped sides, and the removable spacer really shines when making them. To wrap the grain around a box, you’d normally resaw stock for the sides, cut one long side, then the two short sides, and finish with the second long side. This sequence requires removing the stop for the short sides in order to cut the second long one—no problem when you’re making one box, but a nonstarter when making multiples. There’s no such issue with my removable spacer.

miter one end of the box side
Miter one end of the blank using a sled. This cut establishes the box’s first corner. Stowe places the outside face down on the dedicated miter sled, whose zero-clearance kerf lets him both align the cut easily and limit blowout.

After thicknessing stock for the box sides and ripping it to width, I use a 1/8-in. slot-cutting bit to rout a groove for the box bottom. If the box will have a captured top panel, I rout it using the same setup.

To cut the miters, I use a dedicated sled at the tablesaw. Begin by mitering one long side. The first cut will be away from the stop clamped to your sled; the second will be against it. Be sure to flip the piece face-for-face between cuts so you cut miters pointing in the same direction.

Next, cut the first short side’s initial miter, flip the stock, put the spacer in place, and cut the opposite miter. Cut the other short side next, following the same procedure. I miter this piece’s first end on the opposite side of the sled, letting me keep the fixed stop in place. To cut the second long side, remove the spacer and cut the remaining miters as you did for the first long side.

installing stop to fence
Set the fixed stop, flip the workpiece, slide it up to the stop, and cut. The stock’s inside face is down for this cut, and the fixed stop is set to the length of the long side. The stop remains in place until you’ve cut all the miters for each box.

Now it’s time to cut the lid and bottom. However, don’t move the stops even though the sides are cut. Keep the spacer handy too. After all, you’ll use the same setup to cut these workpieces as well, cutting them to length against the stop before rotating the workpieces 90°, inserting the spacer, and then cutting them to width.

Batching out boxes spread

From Fine Woodworking #301
